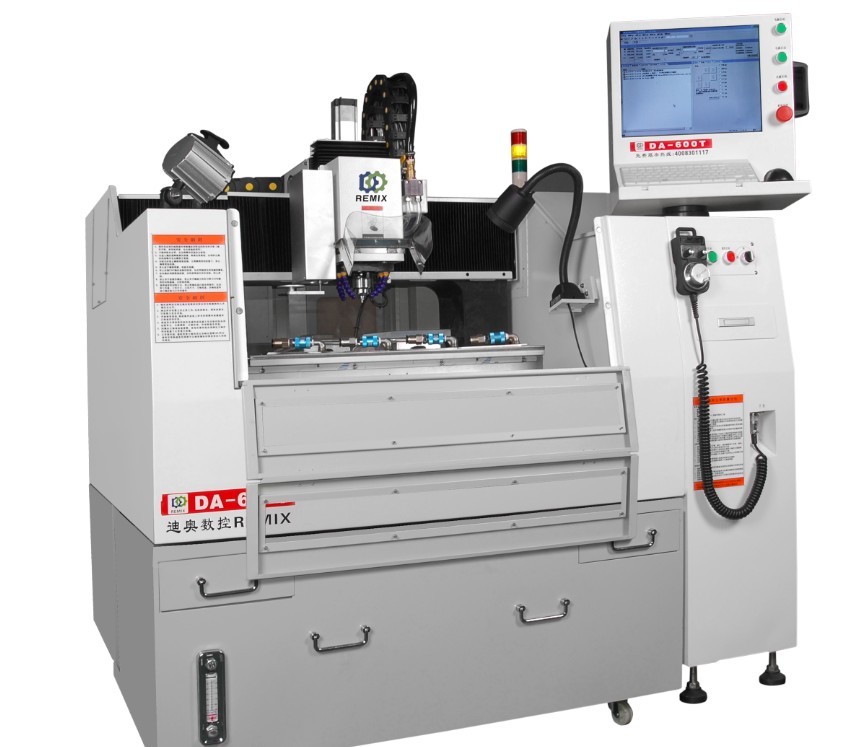

CCD single head carved machine product features:
Before and after the two rows of 6 vacuum fixture, CCD automatic scanning one time processing.
Processing for high quality one-glass.
Control cabinet adopts industrial air-conditioning circulation cooling, control cabinet to achieve full sealing, to ensure that the electrical properties of stable and reliable for a long time. Water tank adopts multilevel filter design, can effectively reduce the recycling of glass powder, push and pull more humanized design.
The 16 nozzle ring, the cross structure is divided into two layers, 360 degree water, ensure the effective control of edge collapse, glass processing, ensure the service life of the grinding head

The parameters of single head carved machine products CCD:

Machine Specifications
ITEM/MODEL		CCD single head carved machine		CCD positioning double carved
WORK MATERIAL		Acrylic/PC/PET	Mobile phone glass	Acrylic/PC/PET	Mobile phone glass
WORK TABLE
Table		T type slot + vacuum flat	T type slot + rule	T type slot + vacuum flat	T type slot + rule
Table size		700×500mm	500×400mm	700×500mm	700×500mm
Table load capacity		100kg		100kg
MOVEMENT & RANGE
Single head processing		600×500×120mm		350×400×120mm
Two-headed simultaneously				(250/330)×400×120mm
Two-headed center distance				250mm/330mm(Adjustable)
Spindle nose to work table		130mm		130mm
ACCURACY
Positioning accuracy		0.008/300mm		0.008/300mm
Repeatability accuracy		0.005mm		0.005mm
SPINDLE
Spindle power		1.2/ 1.5  Kw(Optional)		1.2/ 1.5  Kw(Optional)
Spindle speed range		24000/40000/60000 rpm(Optional)		24000/40000/60000 rpm(Optional)
Change cutters form		Pneumatic(optional: manual mode)		Pneumatic(optional: manual mode)
Collet		Φ6,6-4,6-3.175 diameter		Φ6,6-4,6-3.175 diameter
FEEDING SPEED
Rapid traverse		15m/min		15m/min
Cutting feed rate		9m/min		9m/min
POWER / SIZE
Air pressure		0.7～0.8mp		0.7～0.8mp
Pull of vacuum		-(0.06-0.08)mp
Power spec.		220v/380v(optional) ground
Shape sheet metal		The standard semi batch (optional full face)
Total Power		4.5KW
Machine weight		1700kg
Machine size		1470*1200*1600mm
NC Specifications
Control system	Bao Yuan/Weihong/ wedge induced		The system disk	1G
At the same time reduction shaft	4 axis		Data disc	2G
The least mobile unit	0.001mm		The system disk protection	Read, automatic antivirus / power on reset
Monitor	Special display system		Support file format	DXF/PLT/ENG/GCODE/DEMO/U00
Language	Chinese / English		Manual pulse generator	MPG
Other standard parts
Z shaft automatic tool setting gauge	METROL		Digital display type oiling machine	Taiwan baoteng
MPG	Bao Yuan / Weihong / wedge induced		Working lamp	LED lamp, color lamp, explosion-proof lamp
Water spraying device	360 DEG omni-directional spray device		System	Acrylic / aluminum processing system
The company's product specifications, design characteristics are improved, the above parameters are subject to change without notice!
