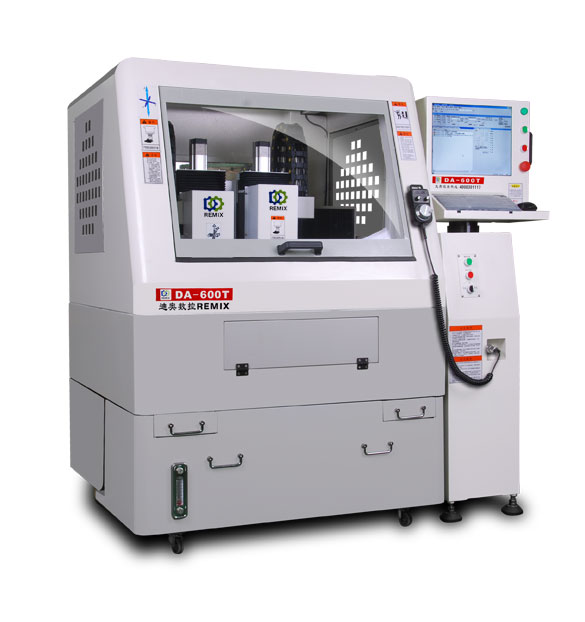

Full cover carved machine DA-600T
Double full cover machine carved DA-600T application industry:
Opening and shape processing glass lens
PC, acrylic, PET window lens cutting, edge
Batch processing of mobile phone keys
Batch processing mobile phone test fixture
Precision electrode, first edition, jewelry, watches, glasses, metal machinery, aluminum alloy parts processing
Precision electrode, first edition, jewelry, watches, glasses, metal machinery, aluminum alloy parts processing
Double full cover carved machine DA-600T machine features:
DA-600T series of carving machine body with billion years of Ji'nan porcelain stone is not high precision deformation processing, no vibration
The original C3 grade precision imported screw precision high wear resistance
Taiwan original P grade rail mounting location plate, to ensure the precision of the track never shift
Screw the fixed end with paired high precision matching angle bearing, high precision, long life
Timing oil automatic oil supply system,, longer service life
High precision, high sensitivity, Japan meidelong tool setting gauge
The spindle with industrial chillers, constant temperature, long service life of the spindle
The 1000000 high bending resistance flexible cable
Machine Specifications | |||||
ITEM/MODEL | DA-600T(Full cover single head) | DA-600T(Full cover stud) | |||
WORK MATERIAL | Acrylic/PC/PET | Mobile phone glass | Acrylic/PC/PET | Mobile phone glass | |
WORK TABLE | |||||
Table | T type slot + vacuum platform | T type slot + rule | T type slot + vacuum platform | T type slot + rule | |
Table size | 600×400mm | 700×500mm | 700×500mm | 700×500mm | |
Table load capacity | 100kg | 100kg | |||
MOVEMENT & RANGE | |||||
Single head processing | 600×500×120mm | 350×500×120mm | |||
Two-headed simultaneously | (250/330)×500×120mm | ||||
Two-headed center distance | 250mm/330mm(Adjustable) | ||||
Spindle nose to work table | 180mm | 180mm | |||
ACCURACY | |||||
Positioning accuracy | 0.008/300mm | 0.008/300mm | |||
Repeatability accuracy | 0.005mm | 0.005mm | |||
SPINDLE | |||||
Spindle power | 1.2/ 1.5 Kw(Optional) | 1.2/ 1.5 Kw(Optional) | |||
Spindle speed range | 24000/40000/60000 rpm (Optional) | 24000/40000/60000 rpm (Optional) | |||
Change cutters form | Pneumatic (Optional: manual mode) | Pneumatic (可选:手动方式) | |||
Collet | Φ6 6/4、6/3.7 Adjustable sets | Φ6 6/4、6/3.7 Adjustable sets | |||
FEEDING SPEED | |||||
Rapid traverse | 15m/min | 15m/min | |||
Cutting feed rate | 9m/min | 9m/min | |||
POWER / SIZE | |||||
Air pressure | 0.7~0.8mp | 0.7~0.8mp | |||
Pull of vacuum | -(0.06-0.08)mp | -(0.06-0.08)mp | |||
Power spec. | 220v/380v(Optional)Grounding | 220v/380v(Optional)Grounding | |||
Shape sheet metal | The standard semi batch(Optional full face) | The standard semi batch(Optional full face) | |||
Total Power | 3KW | 4.5KW | |||
Machine weight | 1600kg | 1700kg | |||
Machine size | 1470*1200*1700mm | 1470*1200*1700mm | |||
NC Specifications | |||||
Control system | Bao Yuan / Weihong / wedge induced | The system disk | 1G | ||
At the same time reduction shaft | 4 axis | Data disc | 2G | ||
The least mobile unit | 0.001mm | The system disk protection | Read, automatic antivirus / power on reset | ||
Monitor | Special display system | Support file format | DXF/PLT/ENG/GCODE/DEMO/U00 | ||
Language | Chinese / English | Manual pulse generator | MPG | ||
Other standard parts | |||||
Z axis automatic tool setting gauge | METROL | Digital display type oiling machine | Taiwan baoteng | ||
MPG | Bao Yuan / Weihong / wedge induced | Working lamp | LED lamp, color lamp, explosion-proof lamp | ||
Water spraying device | 360 DEG omni-directional spray device | System | Acrylic / aluminum processing system | ||
The company's product specifications, design characteristics are improved, the above parameters are subject to change without notice! |
