High light machine industry application:
Suitable for the batch processing of high light products, glass lens (grinding, drilling, chamfering, slotted), (acrylic, PC, PVC, PET) carving window lens and other products.

High light machine features:

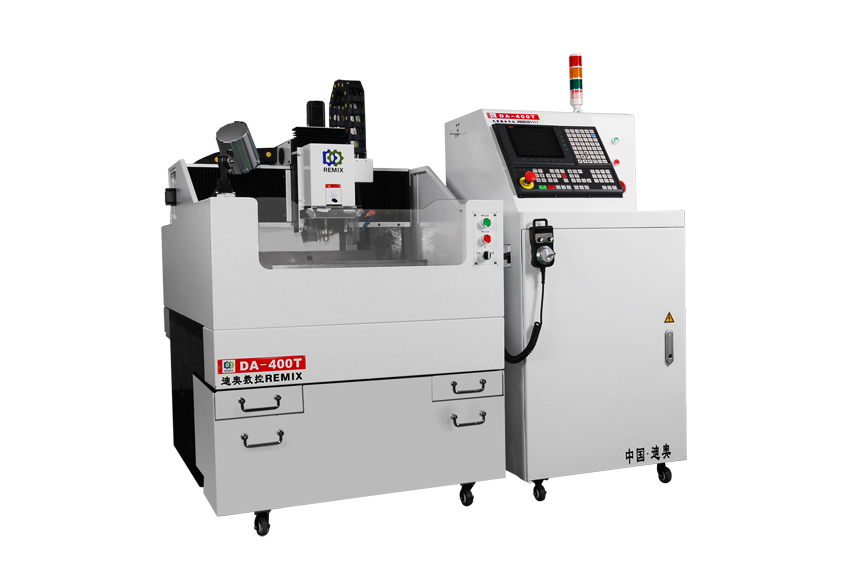

DA-400T series high light machine carved machine body with billion years of Ji'nan porcelain stone is not high precision deformation processing, no vibration
The original C3 grade precision imported screw precision high wear resistance
Taiwan original P grade rail mounting location plate, to ensure the precision of the track never shift
Screw the fixed end with paired high precision matching angle bearing, high precision, long life
Timing oil automatic oil supply system,, longer service life
High precision, high sensitivity, Japan meidelong tool setting gauge
The spindle with industrial chillers, constant temperature, long service life of the spindle
The 1000000 high bending resistance flexible cable

Machine Specifications
ITEM/MODEL		DA-400T
WORK MATERIAL		Acrylic/PC/PET		Mobile phone glass
WORK TABLE
Table		T type slot + vacuum platform		T type slot + rule
Table size		400×400mm		400×400mm
Table load capacity		100kg		100kg
MOVEMENT & RANGE
Single head processing		400×400mm×120mm		400×400mm×120mm
Two-headed simultaneously
Two-headed center distance
Spindle nose to work table		130mm		130mm
ACCURACY
Positioning accuracy		0.008/300mm		0.008/300mm
Repeatability accuracy		0.005mm		0.005mm
SPINDLE
Spindle power		1.2/ 1.5  Kw(Optional)		1.2/ 1.5  Kw(Optional)
Spindle speed range		24000/40000/60000/100000 rpm (Optional)		24000/40000/60000/100000 rpm (Optional)
Change cutters form		Pneumatic (Optional: manual mode)		Pneumatic (Optional: manual mode)
Collet		Φ6  6/4、6/3.7 Adjustable sets		Φ6  6/4、6/3.7 Adjustable sets
FEEDING SPEED
Rapid traverse		15m/min		15m/min
Cutting feed rate		9m/min		9m/min
POWER / SIZE
Air pressure		0.7～0.8mp		0.7～0.8mp
Pull of vacuum		-(0.06-0.08)mp		-(0.06-0.08)mp
Power spec.		220v/380v(Optional)Grounding		220v/380v(Optional)Grounding
Shape sheet metal		The standard semi batch(Optional full face)		The standard semi batch(Optional full face)
Total Power		3KW		3KW
Machine weight		1600kg		1600kg
Machine size		1200*1400*1600mm		1200*1400*1600mm
NC Specifications
Control system	Bao Yuan / Weihong / wedge induced		The system disk	1G
At the same time reduction shaft	4 axis		Data disc	2G
The least mobile unit	0.001mm		The system disk protection	Read, automatic antivirus / power on reset
Monitor	Special display system		Support file format	DXF/PLT/ENG/GCODE/DEMO/U00
Language	Chinese / English		Manual pulse generator	MPG
Other standard parts
Z axis automatic tool setting gauge	METROL		Digital display type oiling machine	Taiwan baoteng
MPG	Bao Yuan / Weihong / wedge induced		Working lamp	LED lamp, color lamp, explosion-proof lamp
Water spraying device	360 DEG omni-directional spray device		System	Acrylic / aluminum processing system
The company's product specifications, design characteristics are improved, the above parameters are subject to change without notice!
